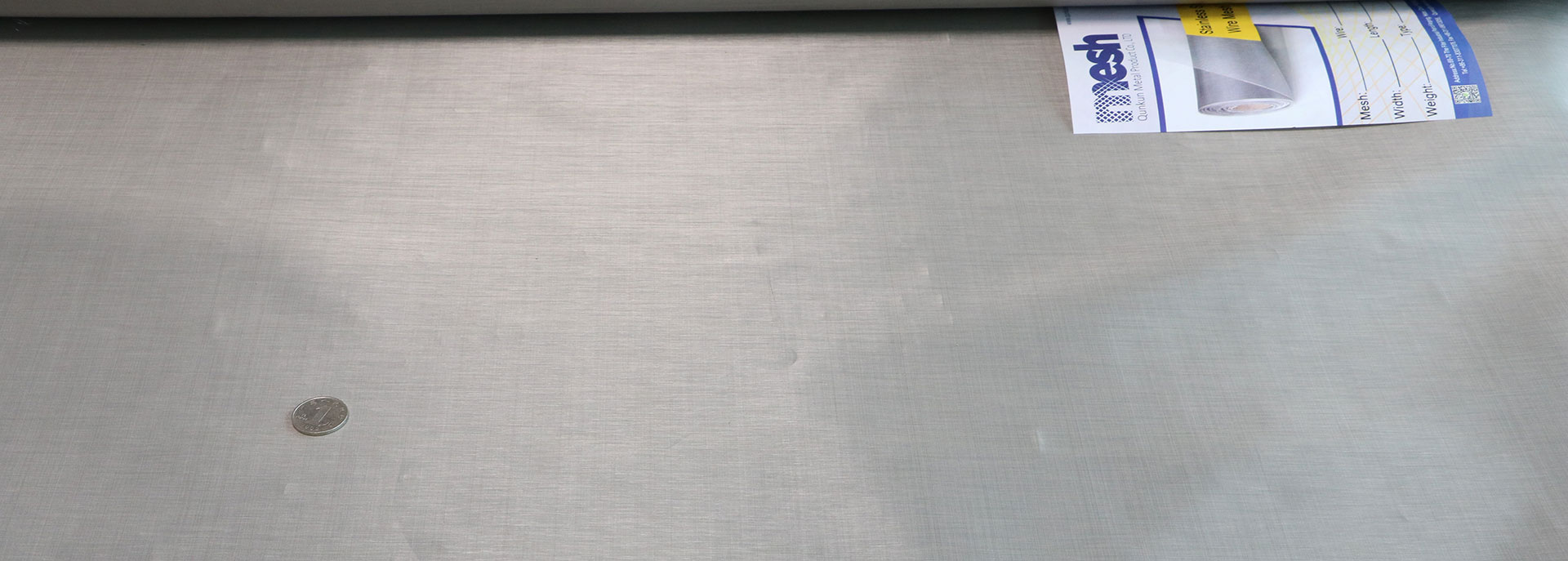

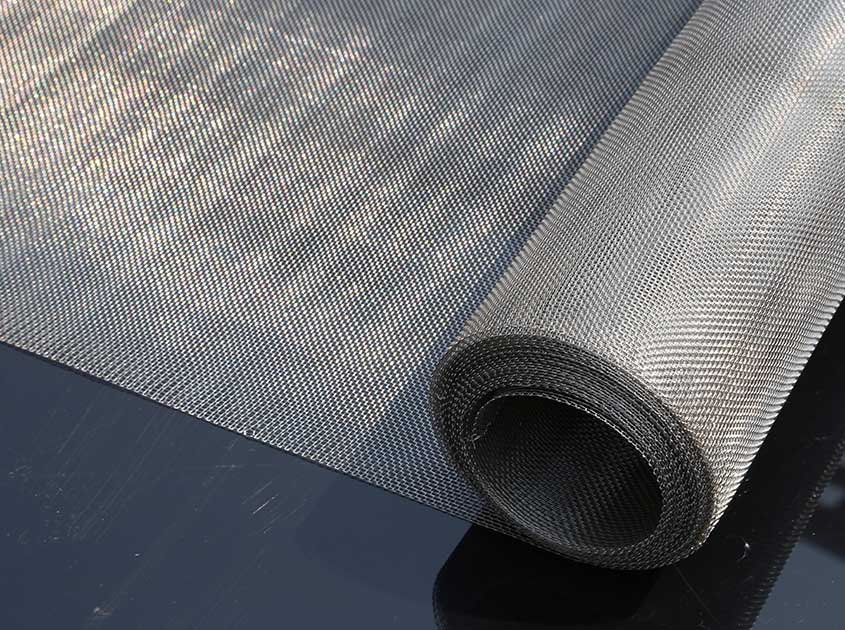

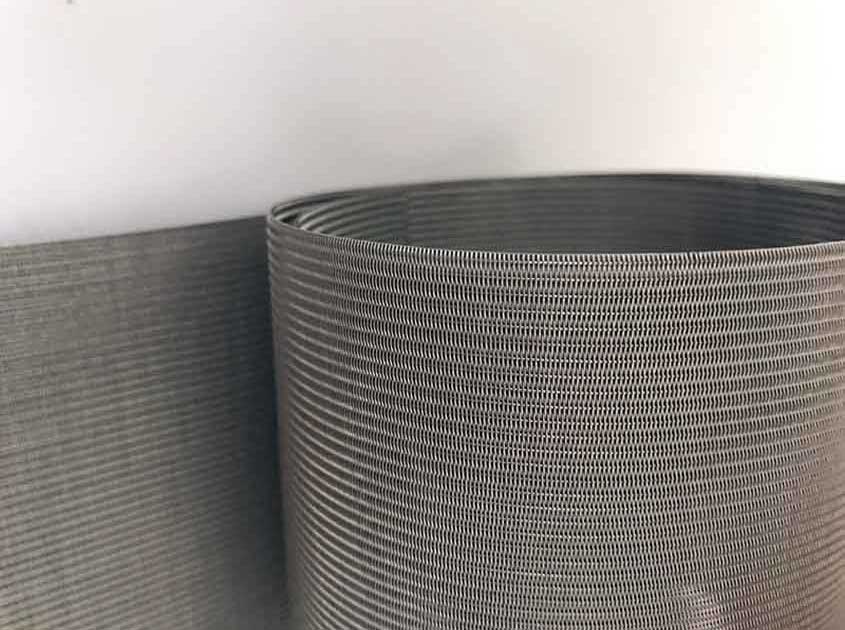

Reversed Dutch Weave Stainless Steel Wire Mesh

Reversed Dutch Woven Wire Mesh is another product specially designed for filtering. It is mainly made of stainless steel wire which is chemical resistance alkali and acid resistance rust and corrosion resistance. It can ensure the durable filtering performance during the usage. The reverse dutch weave can also be used in brass wire which is also has chemical stability for filtering.

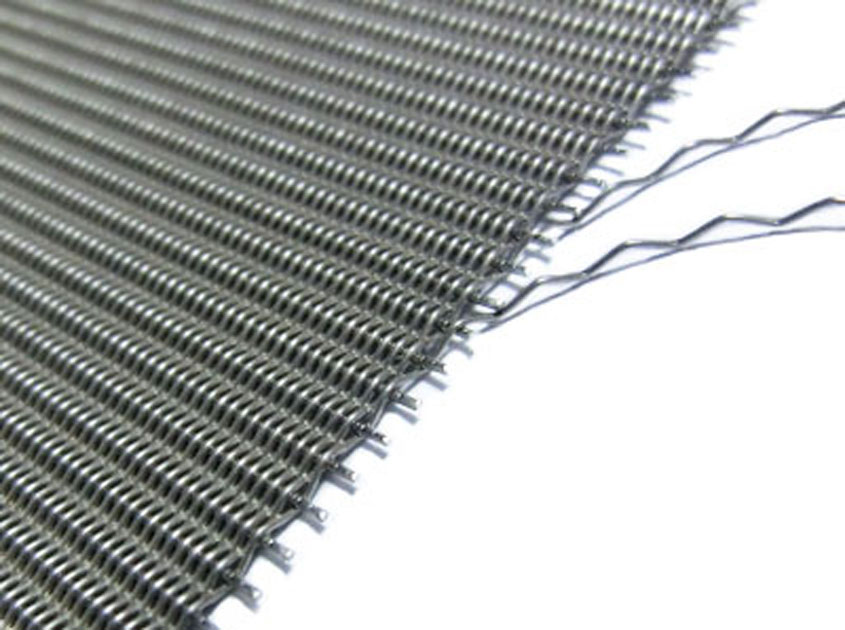

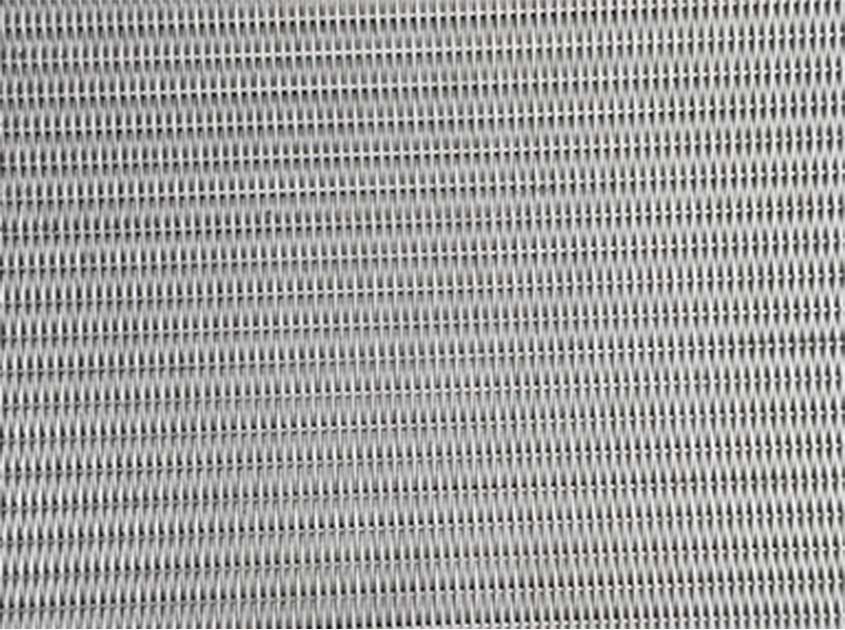

Using two different sizes of wire diameter the stainless steel wire or brass wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical aerospace and other field.

Application of Reversed Dutch Weave Stainless Steel Wire Mesh

Reversed Dutch weave stainless steel wire mesh is mainly used for gas liquid filtration and other medium’s separation. Widely used in precision pressure filter fuel filter vacuum filter.
Can be filter material and applied to aerospace petroleum chemical chemical fiber rubber tire manufacturingmetallurgymedicinefoodscientific researchscreening gravel in building constructionheat sink devicetextile machineryhighly processed products conveying and many other industries.

Features of Reversed Dutch Weave Stainless Steel Wire Mesh
- Excellent resistance to the rust and corrosion.
- Resistance to the acid and alkali.
- Resistance to the chemical and harsh weather.
- High strength
- Better filtering performance.
- Higher tensile strength.
- Can be used for filtering ultra-fine products.
Technical Details
- Material: SUS302304316316L 431 321 310S 904L 410/430 etc.
- Common Width: 0.9m 1.0m 1.22m 1.5m special requirement can be customized.
- Common Length:10m25m30mspecial requirement can be customized.
- Property: Acid-resisting alkali-resisting high temperature resisting strong tension and good abrasion performance. Dutch weave wire mesh has advantage of stable fine and high precision filtering performance.

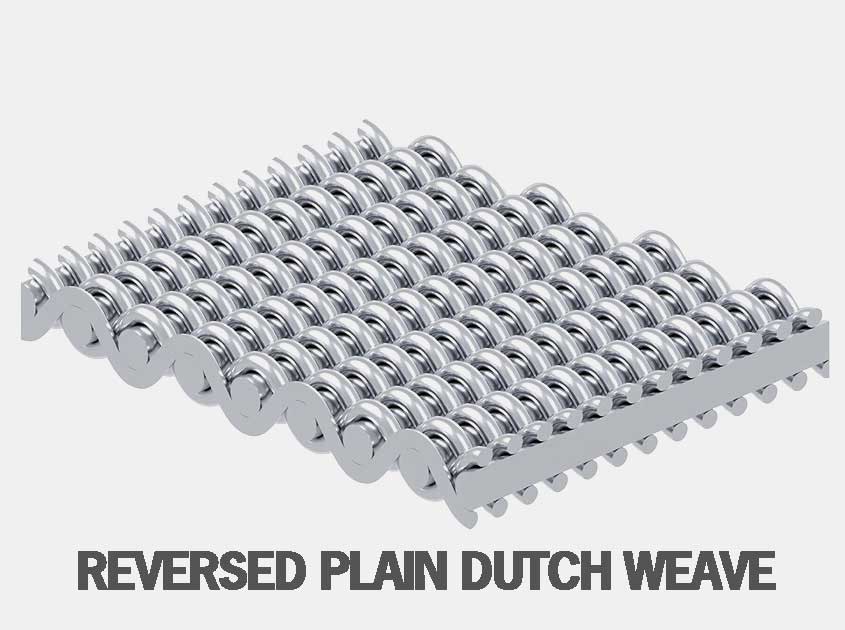

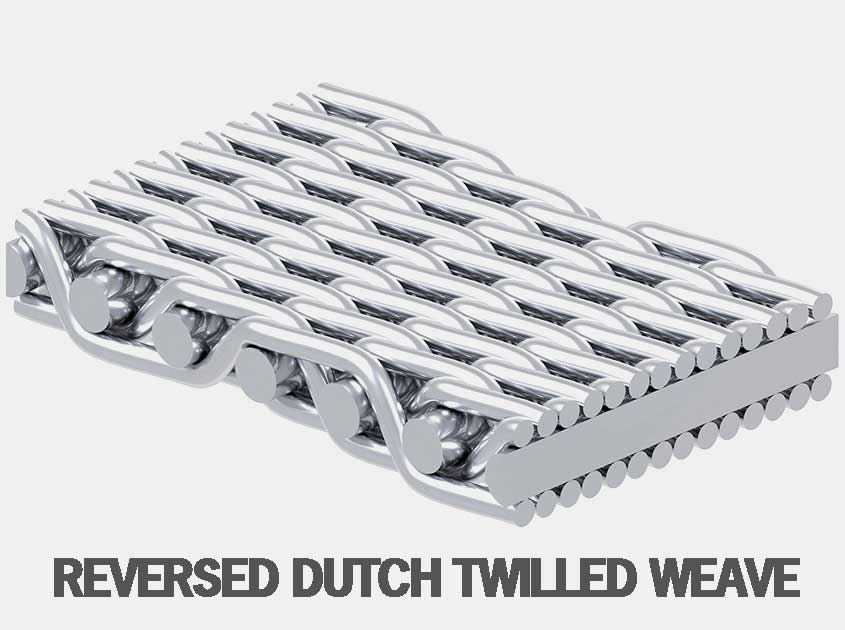

- Weave Pattern:Plain Reverse Dutch WeaveTwill Reverse Dutch Weave

Specification of Reversed Dutch Weave Stainless Steel Wire Mesh

Mesh	Wire Diameter (Inch)	Absolute Filtration Fineness (µm)	Nominal Filtration Fineness (µm)
8X85	.014X.0126	318 – 340	250 – 255
12X64	.024X.0165	270 – 285	200 – 205
14X88	.020X.013	225 – 245	150 – 155
20X150	.0098X.007	155 – 165	100 – 105
24X100	.015X.010	115 – 125	80 – 85
30X150	.009X.007	95 – 100	65 – 70
40X200	.007X.0055	65 – 70	55 – 60
50X250	.0055X.0045	55 – 60	40 – 45
80X400	.0049X.0028	43 – 48	35 – 40

Note: Special size and specifications can be made according to customers requires.

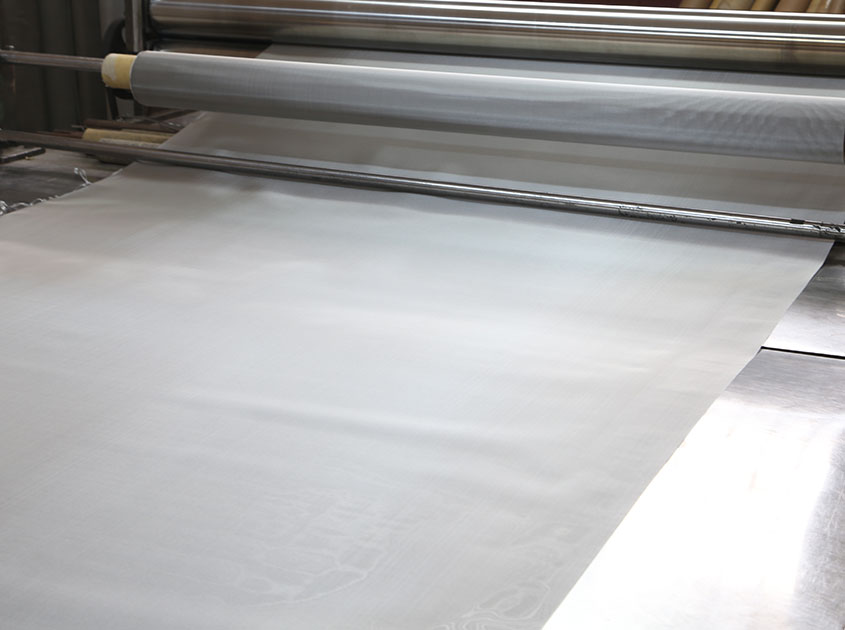

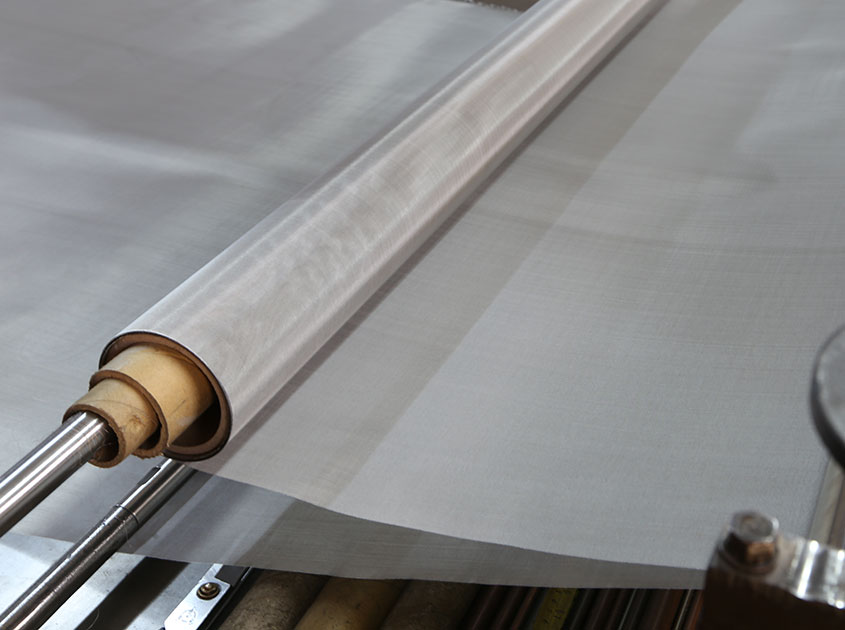

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175

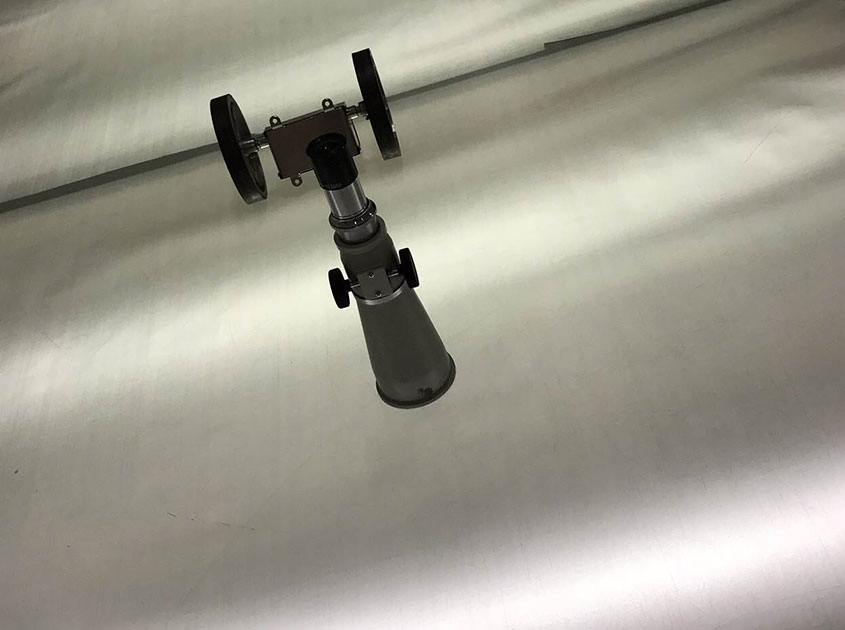

Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification
