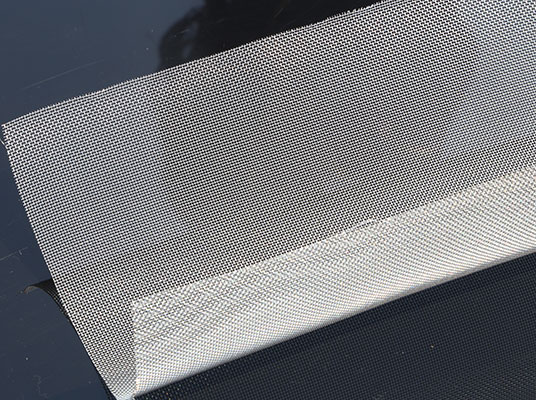

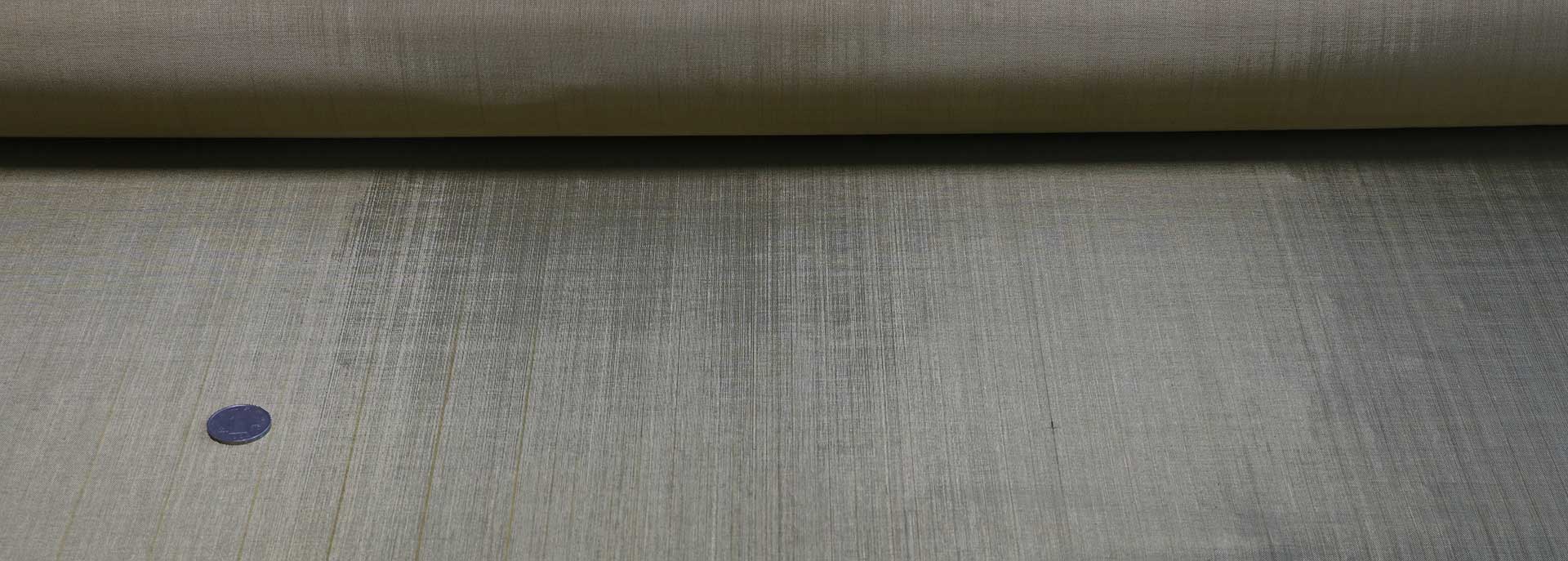

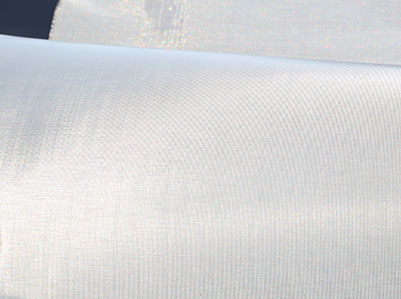

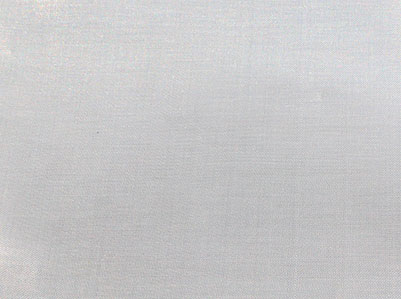

Pure Silver Wire Mesh

Pure Silver Wire Mesh is also called silver mesh silver wire mesh pure silver mesh pure silver woven wire mesh. It is with good electric conductivity thermal conductivity and ductility.
Silver mesh can be used as battery collector mesh electrodes and battery skeleton mesh
Also as filtration material in the high precision filtration equipment.

Application of Pure Silver Wire Mesh

Pure Silver Wire Mesh is also called silver mesh silver wire mesh pure silver mesh pure silver woven wire mesh. It is with good electric conductivity thermal conductivity and ductility.Silver mesh can be used as battery collector mesh electrodes and battery skeleton mesh
Also as filtration material in the high precision filtration equipment.

Features of Pure Silver Wire Mesh
- 1. Lightweight than titanium woven wire mesh and FeCrAl woven wire mesh.
- 2. Best electric conductivity.
- 3. High thermal conductivity and good heat transfer performance.
- 4. Good ductility.
Technical Details
- Material: 99.9% pure silver sheet.
- Technique: Expanded.
- Aperture size: 1mm × 2mm 1.5mm × 2mm 1.5mm × 3mm 2mm × 2.5mm 2mm × 3mm 2mm × 4mm 3mm × 6mm 4mm × 8mm etc.
- Thickness: 0.04mm - 5.0mm.
- Length and width customized.

Specification of Pure Silver Wire Mesh

Mesh	Wire Diameter		Opening		Opening
Mesh	inch	mm	inch	mm	Area %
20 mesh	0.014	0.35	0.036	0.91	51.8
20 mesh	0.009	0.23	0.041	1.04	67.2
24 mesh	0.014	0.35	0.028	0.71	44.2
28 mesh	0.01	0.25	0.026	0.66	51.8
30 mesh	0.011	0.28	0.022	0.55	44.8
30 mesh	0.0065	0.16	0.027	0.68	64.8
35 mesh	0.012	0.3	0.017'	0.43	33.8
35 mesh	0.01	0.25	0.019	0.48	42.4
40 mesh	0.01	0.25	0.015	0.38	36
40 mesh	0.0095	0.24	0.016	0.4	38.4
50 mesh	0.009	0.23	0.011	0.28	30.3
50 mesh	0.008	0.20	0.012	0.3	36
60 mesh	0.0075	0.19	0.009	0.22	30.5
60 mesh	0.0059	0.15	0.011	0.28	40.2

Note: Special size and specifications can be made according to customers requires.

Chemical Composition of Pure Silver Wire Mesh

Ag	Cu	P
99.95%	0.05%	0.002%

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification
