Home > Wire Mesh Materials > Products > Nickel Wire Mesh > Pure Nickel Wire Mesh

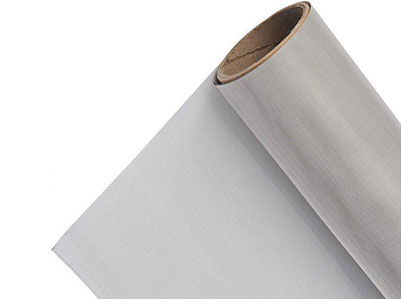

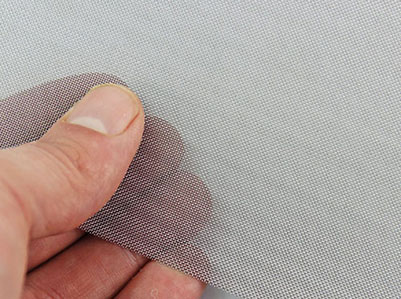

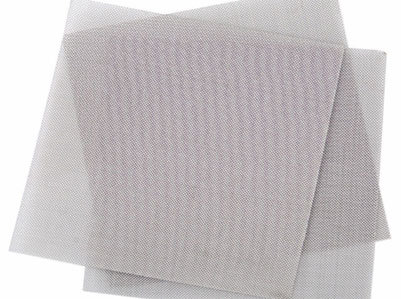

Pure Nickel Wire Mesh is a sliver color metal mesh. According to the purity the nickel has different material types such as the N2 N4 N6 and N8. Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. Nickel wire mesh features excellent corrosion acid and alkali resistance high electrical conductivity thermal conductivity and ductility heat resistance wear resistance. Nickel wire mesh or low-alloy nickel wire mesh is useful in chemical processing because of its resistance to various chemicals including acid alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.

Application of Pure Nickel Wire Mesh

The nickel woven wire mesh is widely used as the filtration materials in the mining oil chemical food pharmaceutical machine and other fields. The nickel woven wire mesh has high electrical conductivity so it can be used in the electronics. The nickel woven wire mesh also can be used for battery production.

  • Features of Pure Nickel Wire Mesh

    • Excellent corrosion

    • Chemical resistance

    • Acid and alkali resistance

    • High electrical conductivity

    • Thermal conductivity

    • Corrosion resistance.

    • Heat resistance

    • Wear resistance

  • Technical Details

    • Material: nickel 200 nickel 205 nickel 270 N2 N4 N6 N8.

    • Weaving type: plain weave twill weave and dutch weave.

    • Wire diameter: 0.0018" - 0.0280".

    • Mesh size: 8 mesh - 200 mesh.

    • Width: 36" 48".

    • Length: customized

Specification of Nickel Wire Mesh Grade Nickel 200

Mesh count Wire Diameter (in.) Type Weave Width Opening (in.) Open Area (%)
8 × 8 0.0280 Plain 0.0970 60.2
10 × 10 0.020 Plain 0.080 64%
12 × 12 0.0140 Plain 0.0693 69.2
16 × 16 0.0120 Plain 0.0505 65.3
16 × 16 0.0140 Plain 0.0485 60.2
20 × 20 0.0045 Plain 0.0455 82.8
20 × 20 0.0070 Plain 0.0430 74.0
20 × 20 0.0140 Plain 0.0360 51.8
25 × 25 0.0060 Plain 0.0190 57.80
26 × 26 0.0100 Plain 0.0285 54.8
30 × 30 0.0130 Plain 0.0203 37.2
40 × 40 0.0060 Plain 0.0190 57.8
40 × 40 0.0100 Plain 0.0150 36.0
50 × 50 0.0020 Plain 0.0180 81.0
60 × 60 0.0070 Plain 0.0097 33.6
60 × 60 0.0105 Twill 0.0062 13.7
60 × 60 0.010 Twill 0.0057 11.60
70 × 70 0.0040 Plain 0.0103 51.8
70 × 70 0.0045 Plain 0.0098 46.9
70 × 70 0.0080 Twill 0.0063 19.4
80 × 80 0.0055 Twill 0.0070 31.40
85 × 70 0.0060 Plain 0.0000 28.4
100 × 100 0.0020 Plain 0.0080 64.0
100 × 100 0.0040 Plain 0.0060 36.0
100 × 100 0.0045 Plain 0.0060 30.30
200 × 200 0.0018 Plain 0.0032 41.0


Specification of Nickel Wire Mesh Grade Nickel 205:

Mesh count Wire Diameter (in.) Type Weave Width Opening (in.) Open Area (%)
60 × 60 0.0060 Plain 0.0107 41.0


Specification of Nickel Wire Mesh Grade Nickel 270:

Mesh count Wire Diameter (in.) Type Weave Width Opening (in.) Open Area (%)
50 × 50 0.067 plain 0.0133 44.2
60 × 60 0.0040 Plain 0.0127 57.8
60 × 60 0.0060 Plain 0.0107 41.0
60 × 60 0.0070 Plain 0.0097 33.6
75 × 75 0.0060 Plain 0.0073 30.3




Grade C% Cu% Fe% Mn% Ni% S% Si% Co% Cr% Mg% Ti%
Nickel 200 0.015 0.25 0.40 0.35 99.0 0.01 0.35 -- -- -- --
Nickel 205 0.02 0.001 0.005 0.001 99.97 0.001 0.001 0.001 0.001 0.001 0.001
Nickel 270 0.15 0.15 0.20 0.35 99.0 0.15 0.15 -- 0.01-0.05 0.01-0.08



Grade Ni+Co Cu Si Mn C  Mg S  Fe  ImpuritySum
  Min Max
N2 99.98  .001 .003 .002 .005 .003 .001 .007  .02
N4 99.9  .015 .03  .002 .01 .01 .001 .04  .1
N6 99.5  .06  .10 .05 .10 .10 .005  .10 .5
N8 99.0  .15 .15 .20 .20  .10 .015 .30 1.0
