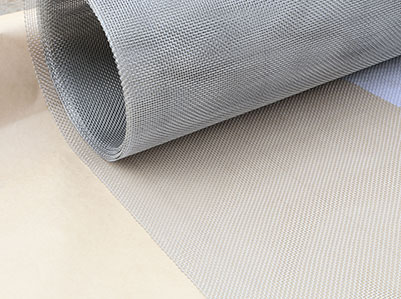

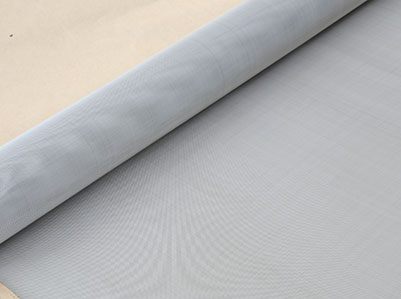

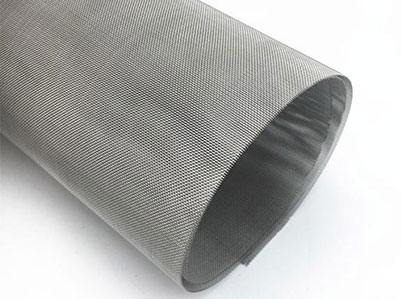

Nichrome Wire Mesh

Nichrome Wire Mesh is the alloy of nickel and chrome. According to different chemical composition nichrome can be divided into Cr20Ni80 Cr15Ni60 and Cr20Ni35.Nichrome wire mesh is made of the nichrome wire. Nichrome wire mesh has outstanding ductility high tensile strength oxidation resistance sulfur resistance and other features.Nichrome wire mesh has a wide range of applications including the aerospace shipbuilding military industry chemical and other fields.
Nichrome wire mesh has outstanding oxidation and sulfur resistance.

Application of Nichrome Wire Mesh

Nichrome wire mesh is widely used in the aerospace shipbuilding war industry chemical machinery electric power desalination medical apparatus and instruments.

Features of Nichrome Wire Mesh
- Good ductility.
- High tensile strength.
- Oxidation resistance.
- Sulfur resistance.
- Permeability resistance.
- Superior elongation.
- Non-magnetic.
Technical Details
- Material: Nichrome wire Cr20Ni80 Cr15Ni60 Cr20Ni35
- Mesh Count: 1-100MESH
- Width: 0.1m-1.5m Length: 30m special sizes can be customized
- Weave: Plain weave Twill weave
- Features: Good ductility. High tensile strength. Oxidation resistance. Sulfur resistance. Permeability resistance. Superior elongation. Non-magnetic. High temperature resistance.

Specification of Nichrome Wire Mesh

Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
4 × 4	0.063	0.1870	56.00
8 × 8	0.047	0.0780	38.90
8 × 8	0.025	0.1000	64.00
10 × 10	0.035	0.0650	42.30
16 × 16	0.020	0.0430	46.20
20 × 20	0.020	0.0300	36.00
20 × 20	0.013	0.0370	54.80
20 × 20	0.016	0.0340	43.20
26 × 26	0.013	0.0260	44.00
40 × 40	0.010	0.0150	36.00
40 × 40	0.0070	0.0180	51.80
80 × 80	0.0055	0.0070	31.40
200 × 200	0.0021	0.0029	33.60
325 × 325	0.0014	0.0017	29.70

Note: Special size and specifications can be made according to customers requires.

Chemical Composition of Nichrome Wire Mesh

Grade	%	Ni	Cr	Fe	Al	Mn	Si	C	P	S
Cr20Ni80	Min	Bal	20	-	-	0.6	0.75	0.08	0.02	0.08
Cr20Ni80	Max		23	1.0	0.2		1.6
Cr15Ni60	Min	55	15	Bal	-	-	0.75	0.08	0.02	0.15
Cr15Ni60	Max	61	18		0.5	0.6	1.6
Cr20Ni35	Min	34	18	Bal	-	1.0	1	0.1	0.03	0.025
Cr20Ni35	Max	37	21		0.5		3

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification
