Monel wire mesh

Monel wire mesh similar to the inconel wire mesh it is also a type of woven mesh which is weaved from nickel-based alloy wire. Monel is the alloy of nickel copper and other chemical elements. According to different chemical elements the monel wire mesh has Monel alloy 400 and monel alloy K500 materials.
Alloy 400 has outstanding corrosion resistance property in the flowing sea water. It can also resist to stress corrosion cracking. Alloy 400 is the most widely used monel material.
Alloy K500 also has outstanding corrosion resistance property like the Monel alloy 400 but the Monel alloy K500 has been added aluminum which can let the monel K500 offer greater tensile strength and hardness than the Monel alloy 400.
The monel wire mesh includes fine woven wire mesh which has the mesh size larger than 80 meshes and coarse woven wire mesh with the meshes no larger than 80 meshes.

Application of Monel Wire Mesh

Monel wire mesh can be widely used in chemical and petrochemical industry and marine development etc. Monel wire mesh also can be used to manufacture all kinds of heat exchange equipment pressure vessel boiler feed water heater equipment oil and chemical pipelines containers towers tank valves etc.

Features of Monel Wire Mesh
- Corrosion resistance in the sea water.
- Corrosion resistance in the chemical solvent.
- Corrosion resistance in the acidoid such as hydrofluoric acid phosphoric acid.
- Corrosion resistance in the alkaline matter.
- Resist to stress corrosion cracking.
- High tensile strength.
- Excellent hardness.
- Long lasting and durable.
Technical Details
- Material: Monel 400 Monel 401 Monel 404 Monel R405 Monel K-500
- Weaving: Plain weave Twill weave
- Melting point: 1300 degree-1350 degree

Specification of Monel Wire Mesh

Mesh (Wires/ in.)	Wire diameter (in.)	Width of opening (in.)	Open area (%)
8 × 8	0.0280	0.0970	60.20
10 × 10	0.0250	0.0750	56.30
12 × 12	0.0230	0.0600	51.80
20 × 20	0.0160	0.0340	46.20
30 × 30	0.0130	0.0203	37.20
40 × 40	0.0100	0.0150	36.00
60 × 60	0.0072	0.0090	30.50
80 × 80	0.0055	0.0070	31.40
100 × 100	0.0045	0.0060	30.30
120 × 120	0.0036	0.0047	32.26
150 × 150	0.0026	0.0041	37.20
200 × 200	0.0021	0.0533	33.60

Note: Special size and specifications can be made according to customers requires.

Chemical Composition of Monel Wire Mesh

Material	C	Mn	Si	S	Ni	Cu	Fe
Monel 400	≤0.30	≤2.00	≤0.50	≤0.024	≥63	28.0~34.0	≤2.5

Material	C	Mn	Si	S	Ni	Cu	Ti	Al	Fe
Monel K500	≤0.25	≤1.50	≤0.50	≤0.010	≥63	27.0 ~33.0	0.35 ~0.85	2.30 ~3.15	≤2.0

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification

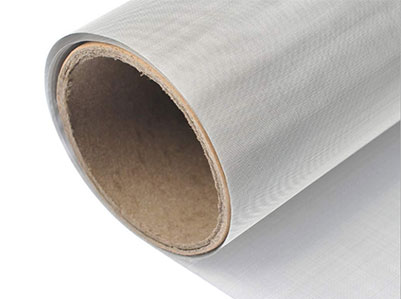

Monel wire mesh

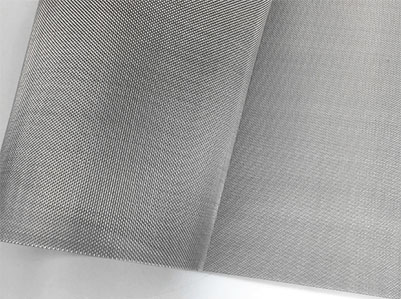

Monel wire mesh

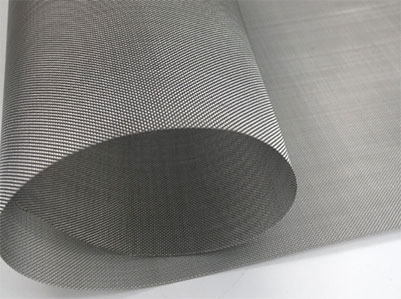

Monel wire mesh
