Home > Wire Mesh Materials > Products > Nickel Wire Mesh > Inconel Wire Mesh

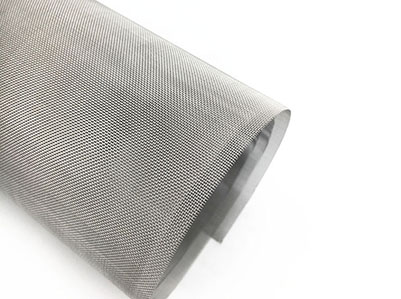

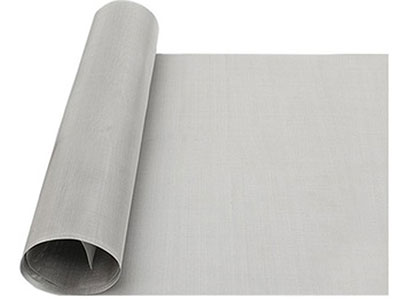

Inconel Wire Mesh is a type of woven wire mesh made of inconel wires. The inconel is the alloy of nickel chrome and iron. According to the chemical composition the inconel can be divided into inconel 600 inconel 601 inconel 625 inconel 718 and inconel X750.
Without magnetism inconel wire mesh can be used in a temperature range from below zero to 1093 degree. Inconel wire mesh has excellent corrosion resistance and its oxidation resistance performance is better than the nickel wire mesh. It is widely used in the petrochemical aerospace industry and other fields.

Application of Inconel Wire Mesh

Chemical industry

Petrochemical industry

Flue gas desulfurization

Pulp and paper

Environment protection industry

  • Features of Inconel Wire Mesh

    • Non-magnetic.

    • High temperature resistance.

    • Good cold-formed function.

    • Good weld ability.

    • Excellent corrosion resistance.

    • Oxidation resistance.

  • Technical Details

    • Material: Inconel 600 (N06600) Inconel 601 (N06601) Inconel 625 (N06625) Inconel 718 (N07718) Inconel X-750 (N07750)

    • Mesh Count: 2-200

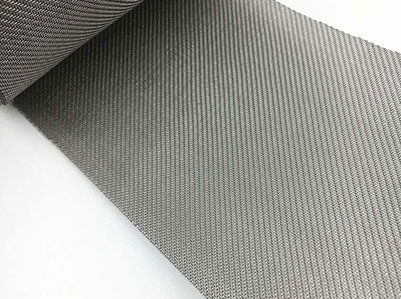

    • Weaving: Plain weave Twill weave

Mesh (Wires/ in.) Wire diameter (in.) Width of opening (in.) Open area (%)
4 × 4 0.1200 0.1300 27.00
4 × 4 0.0800 0.1700 46.20
4 × 4 0.0630 0.1870 56.00
5 × 5 0.0400 0.1600 64.00
6 × 6 0.0410 0.0126 57.20
8 ×8 0.0470 0.0780 38.90
8 × 8 0.0410 0.0840 45.20
8 × 8 0.0300 0.0950 57.80
8 × 8 0.0280 0.0970 60.20
10 × 10 0.02250 0.0750 56.30
10 × 10 0.0150 0.0850 72.30
12 × 12 0.0410 0.0420 25.40
12 × 12 0.0250 0.0580 48.40
16 × 16 0.0360 0.0275 19.40
16 × 16 0.0280 0.0350 30.50
16 × 16 0.0250 0.0380 36.00
16 × 16 0.0230 0.0400 39.90
16 × 16 0.0180 0.0450 50.70
18 × 18 0.0280 0.0280 24.70
20 × 20 0.0160 0.0340 46.20
22 × 22 0.0150 0.0310 45.00
24 × 24 0.0140 0.0280 44.20
24 × 24 0.0120 0.0300 50.80
28 × 28 0.0130 0.0230 40.40
30 × 30 0.0150 0.0180 30.10
30 × 30 0.0100 0.0233 48.90
35 × 35 0.0055 0.0236 68.10
40 × 40 0.0100 0.0150 36.00
50 × 50 0.0090 0.0110 30.20
60 × 60 0.0075 0.0092 30.50
80 × 80 0.0055 0.0070 31.40
100 × 100 0.0040 0.0060 36.00
100 × 100 0.0045 0.0055 30.20
120 × 120 0.0038 0.0046 30.70
120 × 120 0.0020 0.0063 57.80
200 × 200 0.0021 0.0029 33.60
200 × 200 0.0020 0.0030 36.00

Note: Special size and specifications can be made according to customers requires.

Grade C Cr Cu Fe Mn Ni S Si
Inconel 600 0.15 14 - 17 0.5 6 - 10 1.0 72.0 0.015 0.5



Grade C Cr Cu Fe Mn Ni S Si Al
Inconel 601 0.1 21 - 25 1.0 Rem 1.0 58 - 63 0.015 0.5 1.0 - 1.7



Grade C Cr Fe Mn Ni S Si Al Cb Mo P Ti
Inconel 625 0.1 20 - 23 5.0 0.5 Rem 0.15 0.5 0.4 3.15 - 4.15 8 - 10 0.015 0.4



Grade C Cr Cu Fe Mn Ni S Si Al Cb Mo P Ti B C Co
Inconel 718 0.08 17-21 0.3 Rem 0.035 50 - 55 0.015 0.35 0.2 - 0.8 4.75- 5.50 2.8 - 3.3 0.015 0.65- 1.15 0.006 0.08 1.0



Grade C Cr Cu Fe Mn Ni S Si Al Cb Ti
Inconel 750 0.08 14 –17 0.5 5 – 9 1 70 0.01 0.5 0.4 – 1 0.7 – 1.2 2.0 – 2.6
