This is a product made by combining multiple dies and stamping. Most of the product dimensions are non-standard products. The standard model can be customized by consulting the manufacturer. Silk warp: 0.025mm-1.0mm-6mm width: 1.02m-6.02m (can be cut into strip filter belts on request, width 5cm-10cm-20cm...100cm) Specification: plain weave 1 mesh-200 mesh- 400 mesh; diagonal weave 40-500 mesh; mat-type plain weave 7×40-100×1200; mat-type diagonal weave 20×150-500×3500 Filtration precision: 1μm-3μm-5μm-8μm-10μm-12μm.. .100μm...4.0mm...20.5mm
2. Tube series products

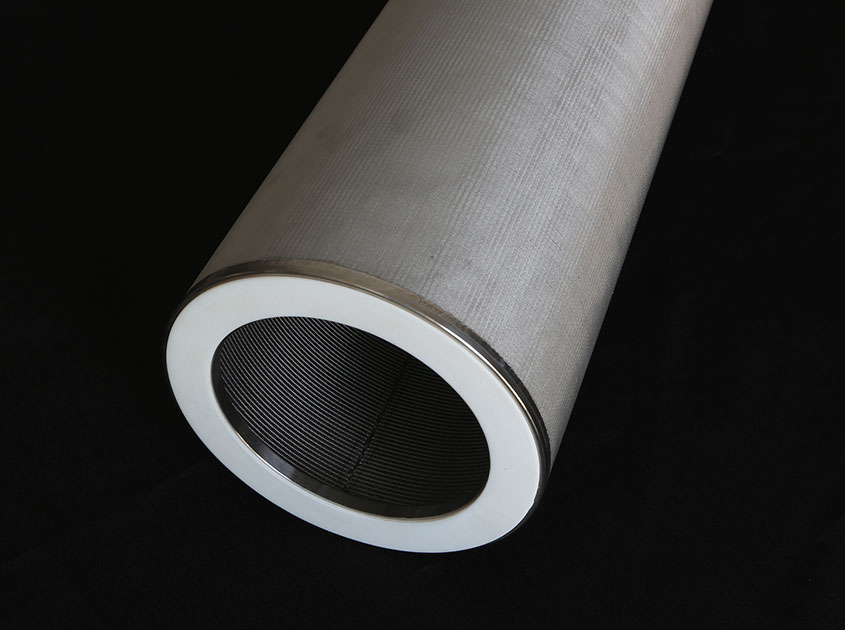

The stainless steel filter cartridge is a detachable cylindrical device, planned in accordance with the national manufacturing specifications, with good filtering function, reliable quality, and looking forward to purchase.
Features of Stainless Steel Filter Cartridge:
1. Large flow per unit area.
2. Suitable for low temperature and high temperature environment.
3. Uniform pores and accurate filtration accuracy.
4. Good corrosion resistance, heat resistance, pressure resistance and wear resistance.
5. It can be reused after cleaning, without replacement.
6. Good filtering function, uniform surface filtering function for 2-200um filtering particle size.
3. Stainless steel filter mesh products
Stainless steel filter mesh can be divided into many types according to the shape, such as round, ring, rectangle, oval, crescent, semicircle, triangle, etc. The shape, material, and density of the filter can be customized according to customer needs.
4. Stainless steel filter mat series
Wire mesh washers are generally called wire mesh washers, shock-absorbing washers, metal wire mesh washers, and wire mesh shock-absorbing washers. The product is a kind of wire mesh woven in a special way, which can be customized according to customer needs. Metal wire Mesh gaskets are mainly used in petrochemicals, automobiles, electronics, machinery, pressure vessels, drying towers, absorption towers, desulfurization towers, environmental protection projects to remove water, mist and dust; for filtration, screening, catalyst and distillation, transpiration, absorption and other technical processes Separate gas and liquid, separate gas and water.
The main filter material of the stainless steel filter mesh is stainless steel sintered mesh and stainless steel woven mesh as the main filter media, and the sealing surfaces of the filter element are joined by argon arc welding technology. The filter layer adopts multi-fold folding technology to form a complete filter element with no leakage and no media falling. Stainless steel fiber sintered felt is a kind of porous deep-shaped filter material made of stainless steel fiber after high temperature sintering. The stainless steel woven mesh is woven from stainless steel wire. The processed products have high porosity, good air permeability, low resistance and low pressure difference. After the woven mesh is processed into a folded shape, the filtering area is large and the dirt holding capacity is large.
The stainless steel filter has the characteristics of good permeability, high strength, strong corrosion resistance, easy cleaning and anti-cleaning, not easy to damage, and no data separation. High temperature resistance, corrosion resistance, suitable for filtration of highly viscous liquids. It has good regeneration function and can be reused after chemical cleaning, high temperature and ultrasonic cleaning.
