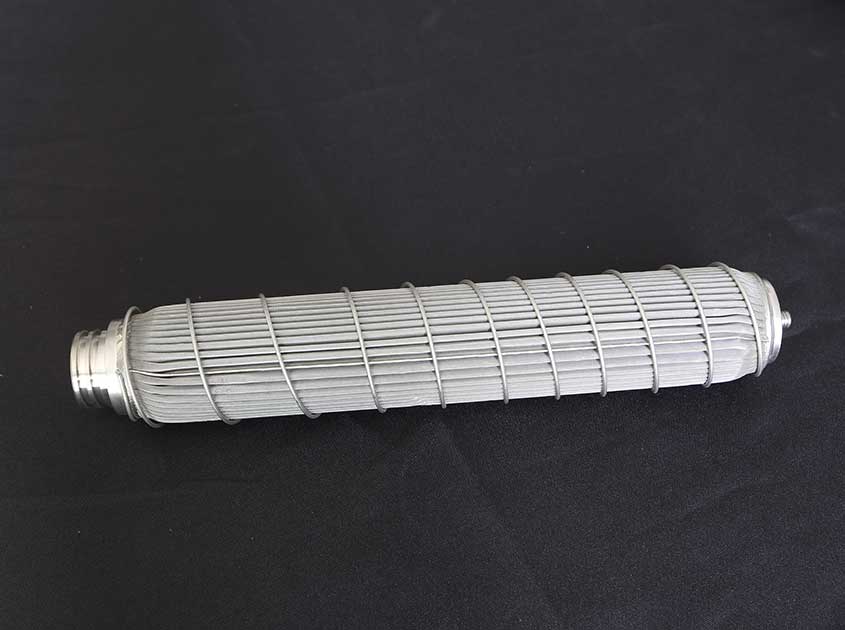

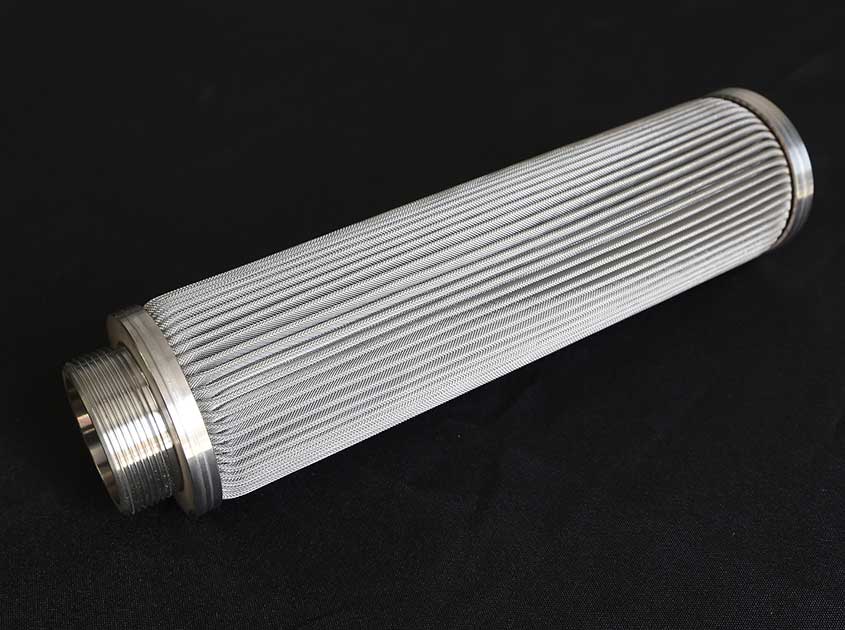

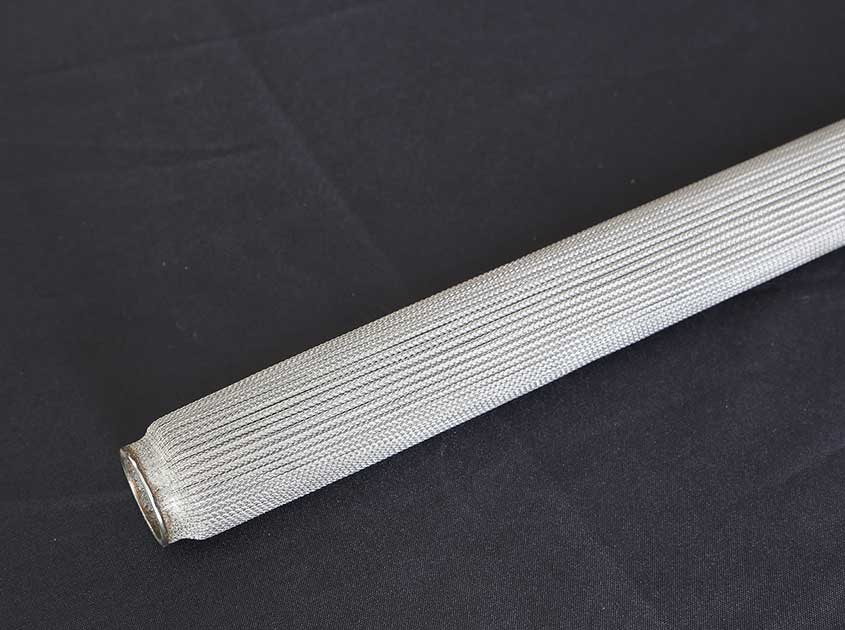

Pleated filter

Pleated filter also named stainless steel pleated filter made of pleated stainless steel sintered fiber web and stainless steel weaving wire cloth. Pleated filter enjoy the characteristics of long life span easy cleaning low cost etc. It is widely used in chemical fiber petroleum chemical industry electric powder filtration.

Application of Pleated filter

Pharmaceuticals fluidized beds liquid and gas filtration chemical processing chemical fiber filtration food and beverage oil and gas filtration polyester and water treatment industries.

Features of Pleated filter
- Large filtration area and particle holding capacity;
- High porosity rate good air permeability and filtration ability;
- Suitable for viscous liquid filtration recycled using after cleaning;
- Workable in High temperature or and high pressure.

Specification of Pleated filter

Material	ss304 wire meshss316 wire meshss316l wire meshbrass wire mesh hastelloy sintered wire mesh nickel wire mesh monel wire mesh FrCrAl wire mesh etc
Filter precision	1 - 2000μm
Working temperature	-50°C -800°C
Working pressure	30Mpa
Filtration area	0.01-0.2m2
Rated flow	80-200L/min
length	5" 10" 20" 30" 40" or as needed.
Diameter	60 mm 64 mm 69 mm 83 mm 131 mm or as needed.
Inner diameter	28–40 mm or as needed.
Main filter media	stainless steel sintered fiber web and stainless steel wire woven cloth.
Installing form	standard (using o-ring to seal) thread tie rod flange fast interface

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification
