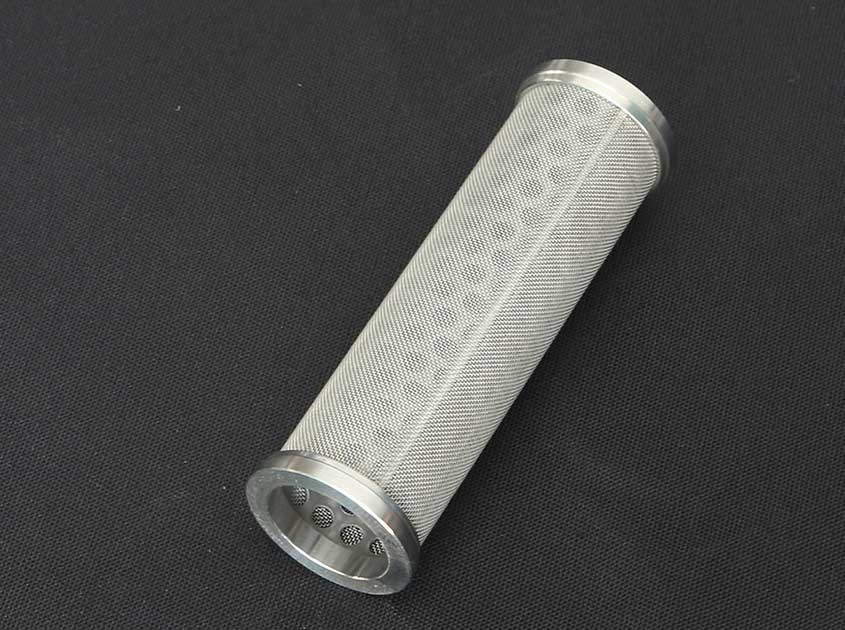

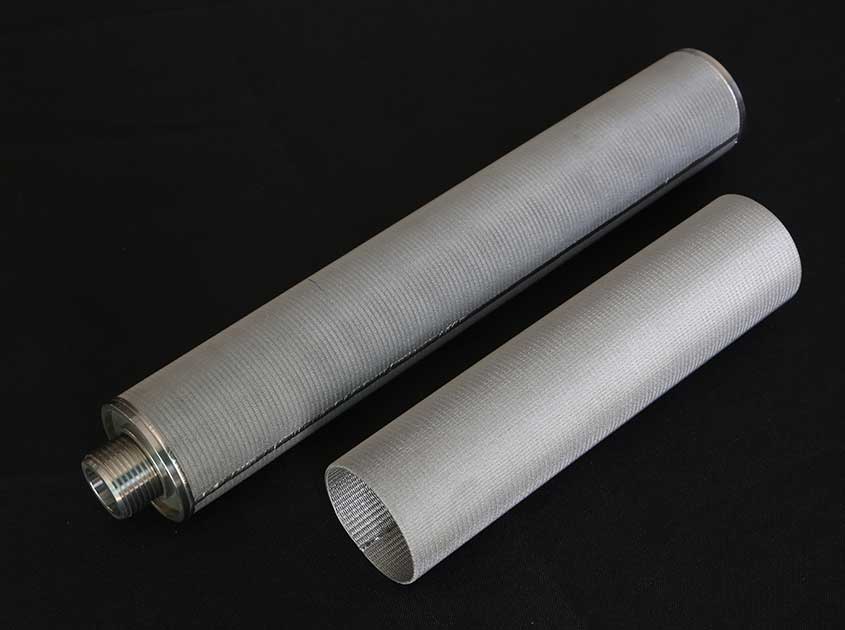

sales@qunkun.netCandle Filter also named the melt filter element is mainly used for high temperature high pressure high viscosity polymer polyester melt filtration. The filter upper and lower end caps are made of stainless steel to ensure corrosion resistance. The filter medium is made of stainless steel fiber sintered felt and stainless steel wire braided mesh is folded and corrugated. The dimensions are small and the filter area is large. It can be cleaned repeatedly.With the pore gradient formed by layers of different pore sizesthe stainless steel sintered fiber felt product can achieve higher rating and larger holding capacity.
Used for polymer water treatment oil pharmaceutical food and beverage chemical synthetic filtration and medium filtration such as high temperature system.It was used for the filtration of hydraulic system of rolling mill and continuous caster and filtration of various lubrication equipments in metallurgy industry.Deionized water pretreatment filtration washing solution and glucose pretreatment filtration in medical industry. Purification and uniform filtration of polyester melt During the drawing process in Textile industry.
Features of Candle filter
Material | ss304 wire meshss316 wire meshss316l wire meshbrass wire mesh hastelloy sintered wire mesh nickel wire mesh monel wire mesh FrCrAl wire mesh etc |
Filter precision | 1 - 2000μm |
Working temperature | -50°C -800°C |
Working pressure | 30Mpa |
Filtration area | 0.01-0.2m2 |
Rated flow | 80-200L/min |
length | 5" 10" 20" 30" 40" or as needed. |
Diameter | 60 mm 64 mm 69 mm 83 mm 131 mm or as needed. |
Inner diameter | 28–40 mm or as needed. |
Main filter media | stainless steel sintered fiber web and stainless steel wire woven cloth. |
Installing form | standard (using o-ring to seal) thread tie rod flange fast interface |
The different ways in which our products are packed are:
We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
