Plate Conveyor Belt

Plate Conveyor Belt can load heavy duty products without any other support it provides a large area for sorting drying or conveying products.

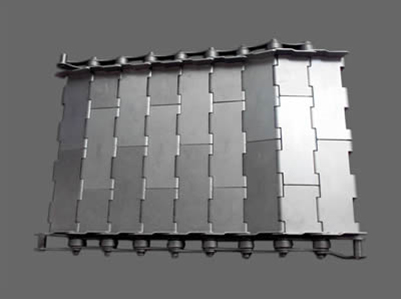

Compared with perforated plate conveyor belt the chain plate conveyor belt has a simpler structure. There is no perforated holes on the plate just plain plate.

Stainless steel chain plate conveyor belt has outstanding chemical stability and high strength which can ensure the long lifespan of the conveyor belt. The thick chain plate can be used to convey the heavy duty products. Additional the chain plate conveyor belt is commonly driven by the chain links which can guarantee the smooth and high efficient working.

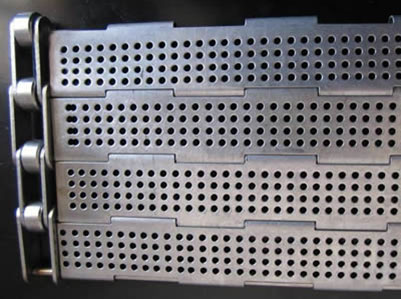

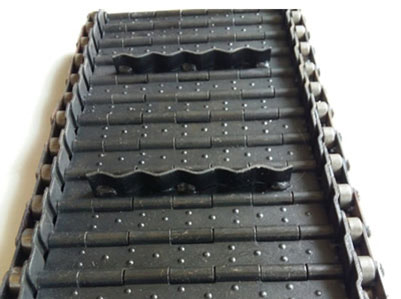

Plate conveyor belt can be divided into three types: chain perforated and convex plate conveyor belt. Chain plate conveyor belt can be made into L-shaped U-shaped or rectangular according to the requirement of space. The holes on the surface of perforated plate conveyor belt with good heat dissipation function. Convex plate conveyor belt has protrusions on the surface that provides the product excellent non-slip to prevent product from falling.

Application of Plate Conveyor Belt

Transport.
Drainage.
Sorting.
Waste treatment.
Elevating.
De-elevating.
Blanching.
Food processing.
Brewery.
Dairy.
Incline conveying.

Features of Plate Conveyor Belt
- Low maintenance and easy cleaning only use water to clean.
- Durable with longer lifespan.
- High load capacity that can load heavy duty products.
- Anti-corrosion anti-rust.
- Self-supporting structure does not require any other support.
- Straight and curved types to suit different conveying line.
Technical Details
- Material: carbon steel plate or stainless steel plate.
- Pitch:commonly is 38.1mm.
- Side guards are available.
- Easy to install and replace
- Corrosion and Rust Resistance & Temperature Resistance.

Specification of Plate Conveyor Belt

Material:	Carbon steel plate stainless steel plate.
Surface Treatment:	Hot dipped galvanized.
Side plate thickness (mm):	1.5 2.0 or 3.0.
Side plate height (mm):	38.1 50.8 76.2 101.6 or 152.4.
Type:	Chain plate conveyor belt Straight Shape: single/double hinged. Curved Shape: flat/bevel edge. Plate thickness: 2.5–5 mm. Plate width (mm): 76.2 82.6 88.9 101.6 114.3 127 152.4 or 190. Customized width available. Pin/Rod diameter: 5–8 mm. Pin pitch (mm): 25.4 31.75 38.1 and 63.5. Perforated plate conveyor belt Cross rod diameter: 5–20 mm. Plate thickness: 1–4 mm. Pitch: 25.4–125 mm. Hole shape: staggered/straight round vertical/horizontal strip slot square. Convex plate conveyor belt Transverse baffle. Side plate.

Factory Production System

Document
1. Commercial Invoice including HS Code
2. Packing List including number of boxes,net weight,gross weight,Marks & Numbers
3. Certificate of Origin legalized/attested by Chamber of Commerce or Embassy
4. Material Test Certificates as per EN 10204 3.1, EN 10204 3.2
5. Test Certificates certifying NACE MR0103, NACE MR0175
Testings
1. Positive Material Identification – PMI Testing
2. Chemical Analysis – Spectro Analysis
3. Mechanical Testing Such as Tensile, Elongation, Reduction of Area
4. Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
5. Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
Packaging

The different ways in which our products are packed are:
1. Shrink-wrapped
2. Wooden Boxes
3. Wooden Pallets
4. Wooden Crates
5. Carton boxes
Marking

We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
1. Manufacturer’s Name or Trademark
2. Material Designation
3. Size Designation
4. Rating Designation
5. Melt Designation
6. Marking for Identification
