Ladder Conveyor Belt

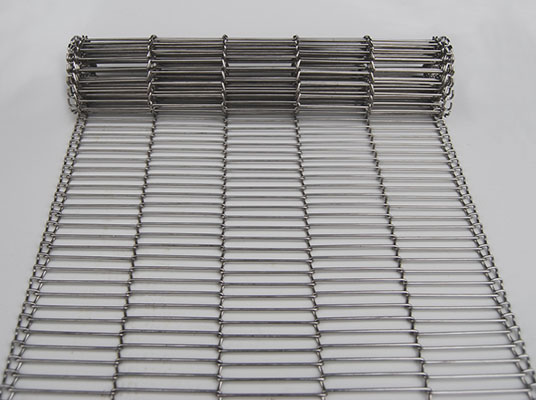

Ladder Conveyor Belt is the simplest type among all type of steel mesh conveyor belt just simply combine the rods and links with various edges. Ladder conveyor belt is made of stainless steel carbon steel and galvanized steel and the intensity of the material is very high so it can be applied to many occasions. In addition the opening area ratio of 86% enables greater air flow to increase the efficiency of cooling heating drainage and drying performance.

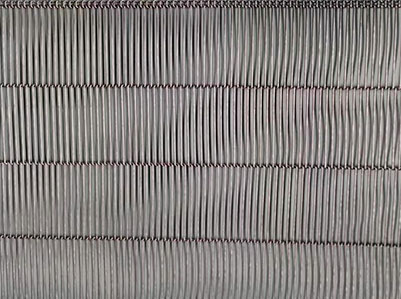

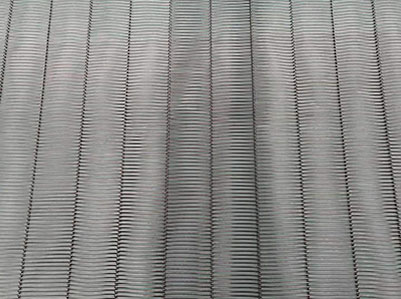

Ladder Conveyor Belt is constructed by several loop wires and then be formed different edge. The simple structure make it economical and lightweight. It can help to save cost and reduce downtime.

Application of Ladder Conveyor Belt

Cooking.
Baking.
Freezing.
Frying.
Heating.
Drying.
Drainage.
Battering.
Cooling.
Washing.
Elevating.
Transport.
Filing.
Turning.
De-Elevating.

Features of Ladder Conveyor Belt
- Large open area.
- Economical.
- Lightweight.
- High temperature resistance.
- Good air circulation.
- Easy to clean and save maintenance cost.
- Durable and long lifespan.
- Different edges for choice.
- Barriers can be added onto the belts.
- Chain link and other driven types.
- Curved rod network belt to suit different machines.
Technical Details
- Materials: quality spring steel AISI 1060; stainless steel wire 302 K2930. Other materials can be customized.
- Open area: 67.5% to 86%.
- Wire diameter: 0.9mm - 2.35mm. Special specs are available.
- Pitch: 4.24mm - 20.32mm. Other pitches can be customized.
- Belt width: 3" to 14' or custom width as your request.

Specification of Ladder Conveyor Belt

Specification of Ladder Conveyor Belt
Item	Wire diameter (mm)	Pitch (mm)	Open area (%)	Edge type
BFFCB-01	0.9	4.24	77	Single/ double
BFFCB-02	0.9	5.64	82	Single/ double
BFFCB-03	1.0	5.5	79	Single/ double
BFFCB-04	1.0	5.6	79.5	Single/ double
BFFCB-05	1.27	4.3	67	Single
BFFCB-06	1.27	5.5	73	Single/ double
BFFCB-07	1.27	6.0	76	Single/ double
BFFCB-08	1.27	6.35	77	Single/ double
BFFCB-09	1.27	7.26	80	Single/ double/ C-shape
BFFCB-10	1.40	6.40	76	Single/ C-shape
BFFCB-11	1.60	7.26	75	Single/ double/ C-shape
BFFCB-12	1.83	12.00	81	Single
BFFCB-13	1.83	12.70	82	Single/ C-shape
BFFCB-14	2.08	9.60	75	Single/ C-shape
BFFCB-15	2.35	12.70	78	Single/ C-shape
BFFCB-16	2.35	20.32	85	Single
BFFCB-17	2.80	12.70	72	Single/ C-shape
