Chain link conveyor belt is simple economical and functional. Combined with several spiral coils the structure of chain link conveyor belt is simple. Besides it can save cost in the production so it is economical and lightweight. Additional the large open area make it suitable for the low load conveying applications. During using the chain link conveyor belt can improve conveying efficiency and reduce downtime so it is popular in drying and cooling applications which has low load but needs high conveying efficiency.
There are three types of Types of Chain link Conveyor Belt: standard reinforced and double reinforced.

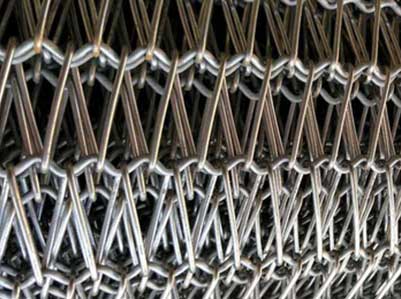

The standard chain link conveyor belt is formed by the several chain link wires.

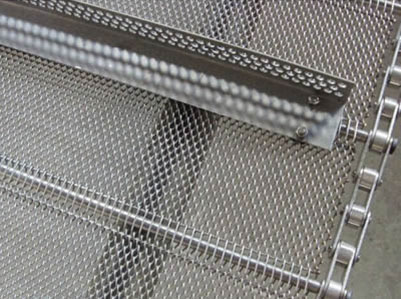

To improve the load capacity of chain link conveyor belt we can supply the rod reinforced chain link conveyor belt for you.

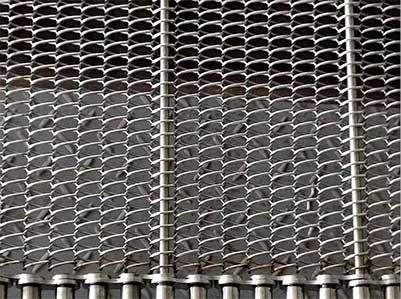

The rod reinforced chain link conveyor belt has two types: reinforced style and double reinforced type.
The chain link conveyor belt has smooth surface and simple structure which is popular in chemical baking cooling heating and other applications.
The chain link conveyor belt can be used with balanced conveyor belt and flat flex conveyor belt to suit different applications.
The edge of chain link conveyor belt can be welded or knuckled:
The welded edge supplies higher strength to the chain link conveyor belts.
The knuckled edge features simple and economical.
Features of Chain link Conveyor Belt
Technical Details
Specification of Standard Chain link Conveyor Belt
| Item | Wire Diameter (mm) | Spiral Coil Quantity | Belt Thickness (mm) |
|---|---|---|---|
| SCLB-01 | 1. 2.8 | 2. 84 | 3. 10 ± 0.5 |
| SCLB-02 | 4. 2.2 | 5. 100 | 6. 8 ± 0.4 |
| SCLB-03 | 7. 1.6 | 8. 69 | 9. 7 ± 0.4 |
| SCLB-04 | 10. 1.2 | 11. 100 | 12. 6.5 ± 0.4 |
| SCLB-05 | 13. 1.1 | 14. 182 | 15. 6 ± 0.4 |
| SCLB-06 | 16. 0.9 | 17. 153 | 18. 6 ± 0.4 |
Specification of Reinforced Chain link Conveyor Belt
| Item |
Wire Diameter mm |
Cross Rod Diameter mm | Spiral Coil Quantity |
Belt Thickness mm |
|---|---|---|---|---|
| RCLB-01 | 3.5 | 4 | 25 | 14 ± 0.6 |
| RCLB-02 | 3.5 | 3.5 | 50 | 14 ± 0.6 |
| RCLB-03 | 2.8 | 2.8 | 50 | 11 ± 0.5 |
| RCLB-04 | 2.0 | 2.0 | 100 | 9 ± 0.4 |
| RCLB-05 | 1.6 | 1.6 | 100 | 7 ± 0.4 |
| RCLB-06 | 0.9 | 0.9 | 200 | 6 ± 0.4 |
Specification of Double Reinforced Chain link Conveyor Belt
| Item |
Wire Diameter mm |
Cross Rod Diameter mm | Spiral Coil Quantity |
Belt Thickness mm |
|---|---|---|---|---|
| DRCL-01 | 3.5 | 3.5 | 100 | 14 ± 0.6 |
| DRCL-02 | 2.8 | 2.8 | 132 | 12 ± 0.5 |
| DRCL-03 | 2.8 | 2.8 | 118 | 11 ± 0.5 |
| DRCL-04 | 2.0 | 2.0 | 200 | 9 ± 0.4 |
| DRCL-05 | 1.6 | 1.6 | 250 | 7.5 ± 0.4 |
The different ways in which our products are packed are:
We mark Duplex 2205 as needed with the most suitable & visible marking techniques. Standard Marking System :-
